IEPE Impact Hammers
Our range of general purpose IEPE impact hammers offer a range of great cost effective solutions for a majority of applications requiring the excitation of a structure. The most common application being Modal testing whereby the structure is excited using the impact hammer and the response of the structure is measured using accelerometers. However instrumented hammers can also be used for crack detection and other structure related investigations.
All our range feature IEPE technology making them compliant with a majority of off the shelf data acquisition systems. However if you require signal conditioning for these hammers, please visit our IEPE signal conditioning product pages.

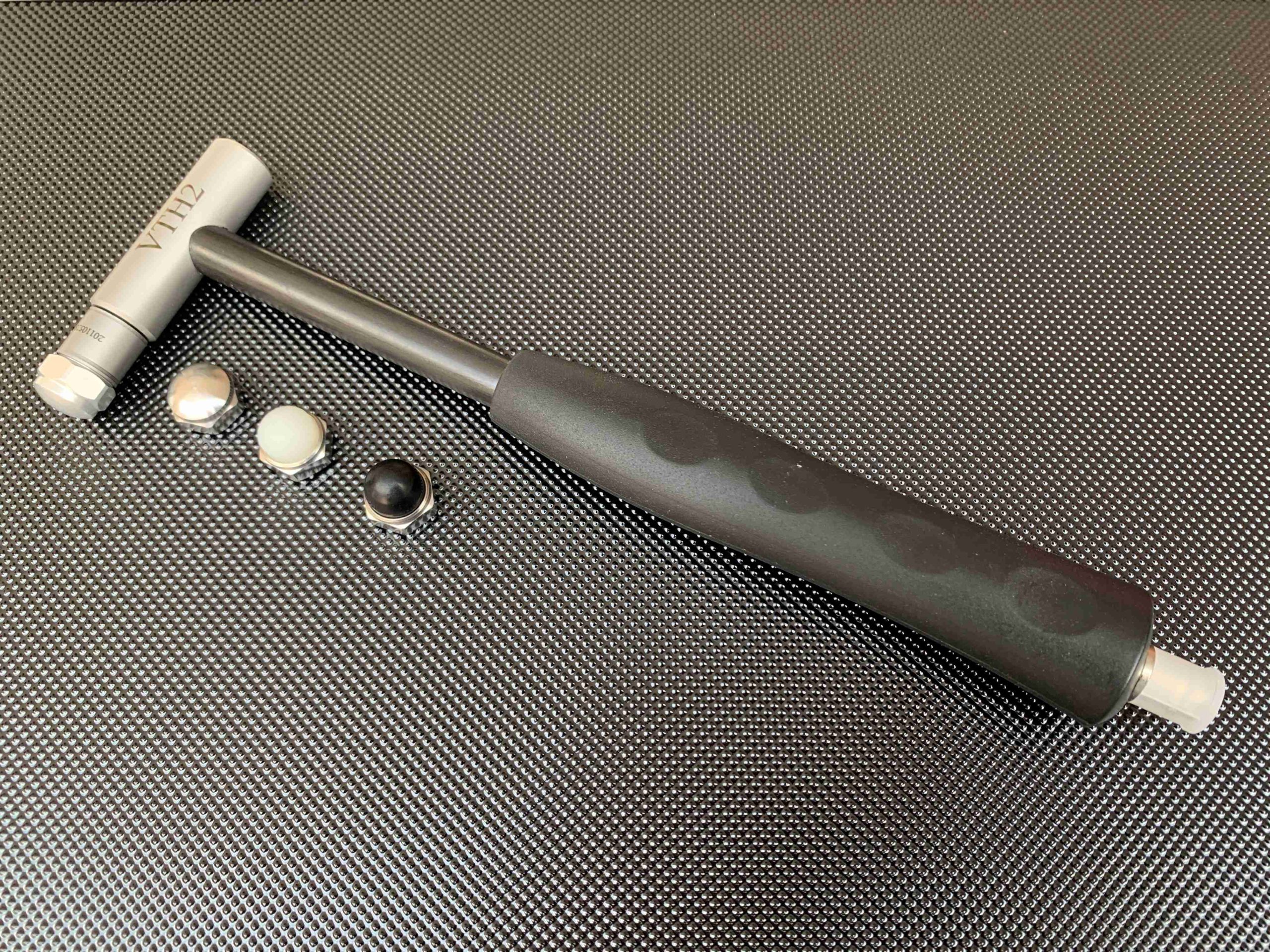

Each hammer is supplied as a kit including multiple hammer tips to suit different excitation frequencies as well as a 2m cable ending in a BNC plug, all securely presented in a carry case.
VTH50 – Range 50N, sensitivity 100mV/N
VTH200 – Range 200N, sensitivity 25mV/N
VTH2KN – Range 2,000N, sensitivity 2.5mV/N
VTH5KN – Range 5,000N, sensitivity 1mV/N
VTH10KN – Range 10,000N, sensitivity 0.5mV/N
VTH20KN – Range 20,000N, sensitivity 0.25mV/N
VTH50KN – Range 50,000N, sensitivity 0.1mV/N
