Piezoelectric Charge Accelerometers

Piezoelectric accelerometers (charge output) are the original design that utilise piezoelectric material to generate an electrical charge which is proportional to the applied acceleration. These devices have many benefits due to their higher operating temperature and robust design with no internal electronics to limit operational use.

Use of PE charge output accelerometers does need some care as they require high quality low noise cables with clean connectors that should always be kept clean of any dirt or contaminents. In addition they also require external charge amplifiers to convert the natural charge output into volts before being measured by DAQ or vibration controller hardware.

Our range of PE accelerometers will be extended soon with the release of several designs of triaxial accelerometers

In addition to PE charge output accelerometers we also supply a full range of IEPE accelerometers. These feature integral amplifier electronics, these can be connected directly to many DAQ systems.

PE accelerometers require charge amplifiers, Kemo have a wide range of solutions, visit our charge amplifier pages for details.



General Purpose Monoaxial Piezoelectric Charge Output Accelerometers

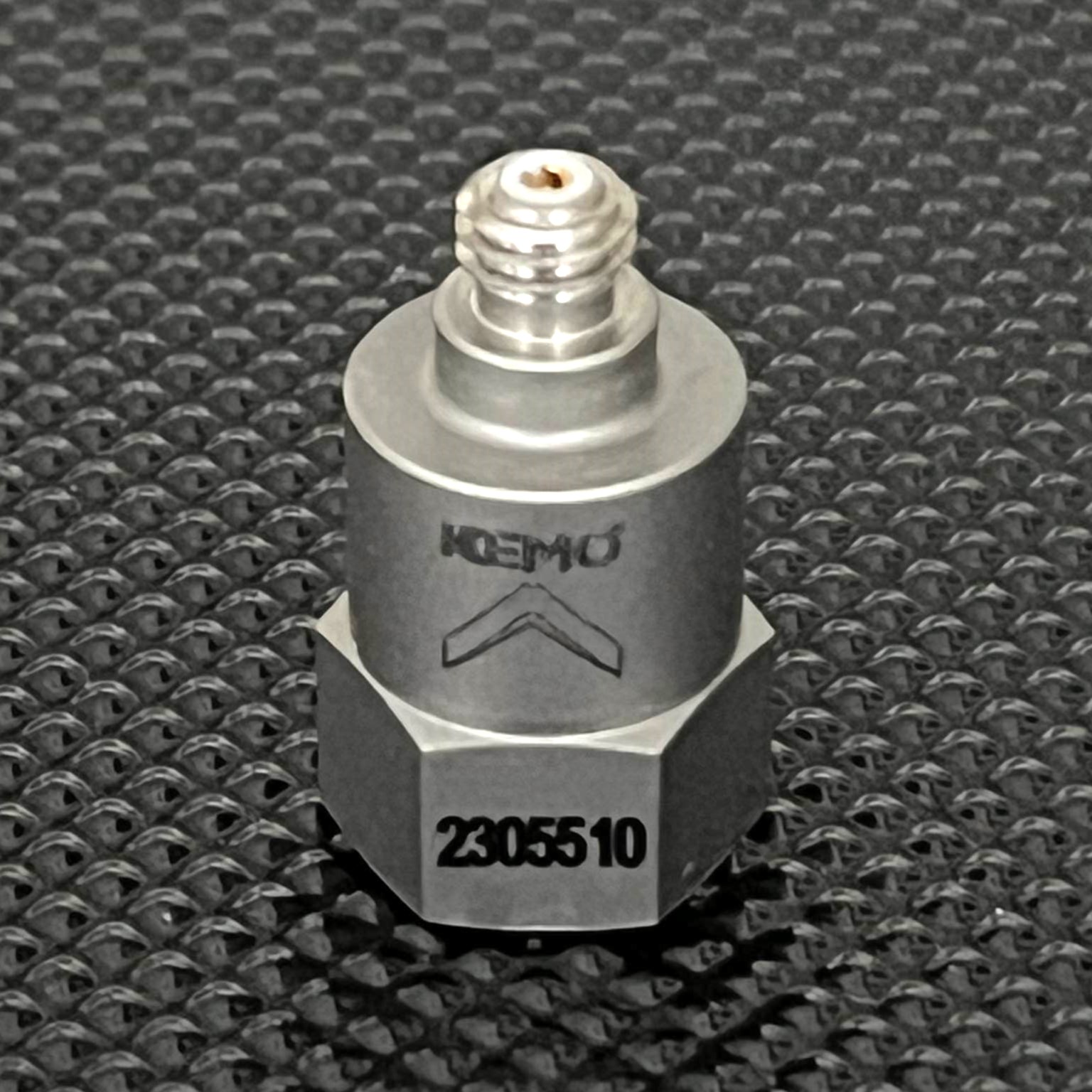

GC10S-T

10pC/g

±5000g

5.8grams

11x16 (mm)

GC10S-T

11kHz

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GC20S-T

20pC/g

±2500g

11grams

13x17.5 (mm)

GC20S-T

10kHz

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GC50S-T

50pC/g

±1000g

22grams

16x20 (mm)

GC50S-T

6kHz

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GC100S-T

100pC/g

±800g

26grams

16x20 (mm)

GC100S-T

6kHz

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GC200S-T

200pC/g

±500g

30grams

16x23 (mm)

GC200S-T

5kHz

Titanium

10/32UNF Microdot side connector

10/32UNF tapped base

GC10T-T

10pC/g

±5000g

5.8grams

11x21 (mm)

GC10T-T

11kHz

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

GC20T-T

20pC/g

±2500g

11grams

13x22.5 (mm)

GC20T-T

10kHz

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

GC50T-T

50pC/g

±1000g

22grams

16x25 (mm)

GC50T-T

6kHz

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

GC100T-T

100pC/g

±800g

26grams

16x25 (mm)

GC100T-T

6kHz

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

GC200T-T

200pC/g

±500g

30grams

16x28 (mm)

GC200T-T

5kHz

Titanium

10/32UNF Microdot top connector

10/32UNF tapped base

Triaxial Piezoelectric Charge Output Accelerometers

GCT2-T

2pC/g

±2000g

15grams

22x22x10 (mm)

GCT2-T

9kHz

Titanium

3 x 10/32UNF Microdot connector

2 x Ø4mm through holes

GCT5-T

5pC/g

±2000g

15grams

22x22x10 (mm)

GCT5-T

9kHz

Titanium

3 x 10/32UNF Microdot connector

2 x Ø4mm through holes

GCT10-H

10pC/g

±1000g

22grams

27.4x22x13 (mm)

GCT10-H

8kHz

Titanium

3 x 10/32UNF Microdot connector

2 x Ø4mm through holes

GCT20-H

20pC/g

±1000g

22grams

27.4x22x13 (mm)

GCT20-H

8kHz

Titanium

3 x 10/32UNF Microdot connector

2 x Ø4mm through holes

GCT10-TH

10pC/g

±1000g

25grams

25x25x14 (mm)

GCT10-TH

7kHz

Titanium

3 x 10/32UNF Microdot connector

1 x Ø5mm through hole

GCT20-TH

20pC/g

±1000g

28grams

25x25x14 (mm)

GCT20-TH

7kHz

Titanium

3 x 10/32UNF Microdot connector

1 x Ø5mm through hole
